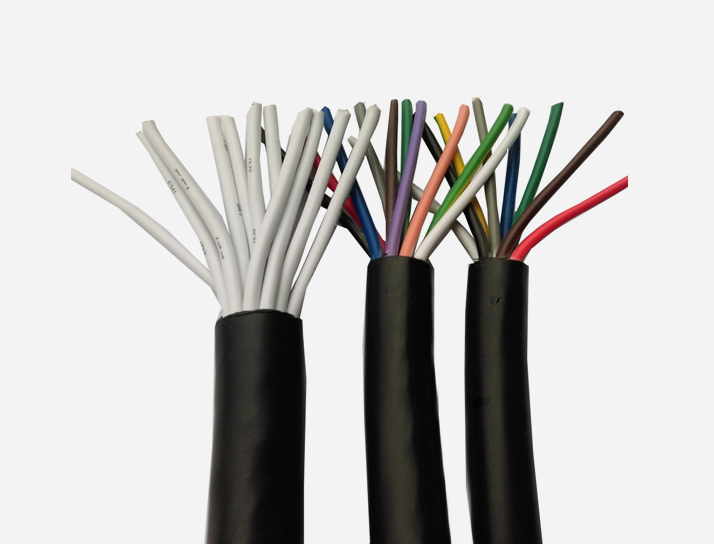

Control Cable(Unarmoured)
1100 Volts Grade- Control Copper Cables, Solid/Stranded conductor, PVC/XLPE/HR PVC Insulated, Cores laid up, PVC/ HR PVC/ FR/ FRLSH/ LSZH Taped/Extruded Inner Sheathed, Unarmoured/ GI Steel (Round Wire/Flat Strip) Armoured, Extruded PVC/ HR PVC/ FR/ FRLSH/ LSZH Outer Sheathed, cables from 2 to 100 crore in 1.5 and 2.5.sq.mm as per IS 1554(Part1) / IS 7098(Part1) 1998
| Applications | Used in fixed wiring, panel wiring, transmission of low voltage signals, electric motors, D.C. power transformers, battery cables, instrumentation, wiring of control panels |
| Conductor | Solid /Fine strands of electrolytic grade annealed copper conductor tinned/bare |
| Insulation | Insulated with special grade PVC/HR PVC/FR/XLPE |
| Sheathing | PVC Taped, PVC extruded Inner Sheath |
| Color | Black colors or as per requirement |
| Size | Single Core: 1.5mm² to 2.5mm² |
| Voltage | Working voltage grade 1100 Volts Test voltage 3000 Volts |
| Temperature Range | Normal working temperature -20°C to 70°C. High working temperature -20°C to 90°C |
| Packing | Drums of approx. 500 mtr. |
