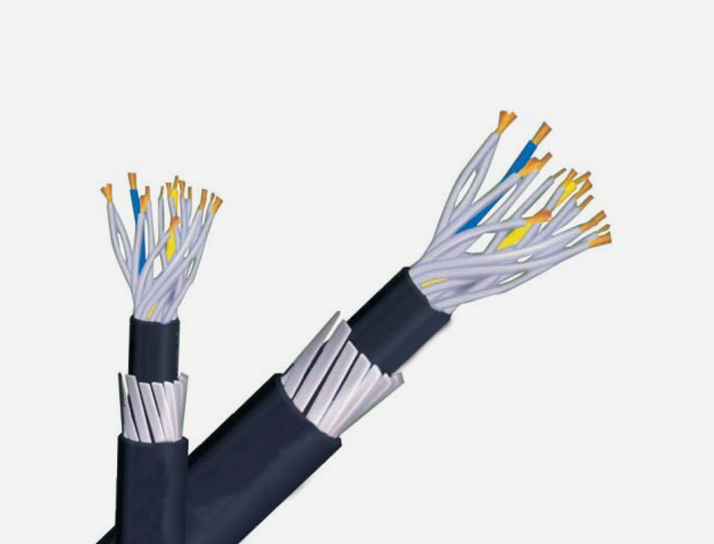

Control Cable(Armoured)
1100 Volts Grade- Control Copper Cables, Solid/Stranded conductor, PVC/XLPE/HR PVC Insulated, Cores laid up, PVC/ HR PVC/ FR/ FRLSH/ LSZH Taped/Extruded Inner Sheathed, Unarmoured/ GI Steel (Round Wire/Flat Strip) Armoured, Extruded PVC/ HR PVC/ FR/ FRLSH/ LSZH Outer Sheathed, cables from 2 to 100 crore in 1.5 and 2.5.sq.mm as per IS 1554(Part1) / IS 7098(Part1) 1998
| Applications | Used in fixed wiring, underground wiring, industrial Control wiring |
| Conductor | Solid /Fine strands of electrolytic grade annealed copper conductor tinned/bare |
| Insulation | Insulated with special grade PVC/HR PVC/FR/XLPE |
| Armoring | Galvanized steel wire or strips or double helical steel tape armoring for single core cable. |
| Sheathing | Special grade PVC/general purpose PVC/FRLS PVC outer sheath |
| Color | Black |
| Size | 1.5 Sqmm to 2.5 Sqmm upto 61 Cores |
| Voltage | Working voltage grade 1100 Volts Test voltage 3000 Volts |
| Temperature Range | Normal working temperature -20°C to 70°C. High working temperature -20°C to 90°C |
| Packing | In 500/1000 Mtr. length Higher sizes on drum |
